How to Separate Gold From Black Sand

To separate gold from black sand, start by classifying your concentrates into size fractions, then pan or run each fraction through a spiral wheel or concentrator, and use a magnet to pull off the magnetic iron minerals. Finish with careful hand panning or a snuffer bottle to collect the gold. The key is working in stages, because black sand is heavy enough to stay with gold in a sluice or pan, so density alone will not remove all of it.

Black sand frustrates almost every new prospector. It fills the bottom of every pan, hides fine gold, and seems impossible to get rid of. This guide explains what black sand is, why it behaves the way it does, and the practical methods that separate gold from black sand without losing the fine gold you worked to collect.

What Is Black Sand?

"Black sand" is a general term for the heavy, dark minerals that concentrate alongside gold in placer deposits. The most common are iron oxides such as magnetite and hematite, plus ilmenite, chromite and sometimes garnet. These minerals have a specific gravity of roughly 4 to 5.5, compared with about 2.65 for quartz and about 19.3 for gold.

That middle position is the problem. Black sand is much heavier than ordinary sand, so it settles in riffles and in the bottom of a pan just like gold. But it is still far lighter than gold, which is why careful staged processing works. Seeing plenty of black sand is generally a good sign: it means your equipment is catching heavy material, and gold travels with heavies.

Step 1: Classify Your Concentrates

Gravity separation works best when particles are a similar size. A large grain of magnetite and a tiny flake of gold can behave alike in moving water; two particles of the same size separate cleanly by density. Screen your concentrates into fractions before anything else. A common sequence is:

Our guide to classifying material and screen sizes covers how to build a screen stack.

Step 2: Remove Magnetic Minerals

Magnetite is strongly magnetic; hematite and ilmenite are only weakly magnetic, if at all. A strong magnet can therefore strip a large share of black sand, but it will not remove everything.

1. Dry the concentrates or work them in a shallow layer of water.
2. Put the magnet inside a plastic bag or use a magnet with a release mechanism. When you pull the magnet out of the bag, the black sand drops off cleanly into a separate container.
3. Pass the magnet over the material slowly, holding it slightly above the surface rather than plunging it in.
4. Pan the removed magnetics once before discarding. Small flakes of gold can get physically trapped in clumps of magnetite and dragged along.
5. Repeat until the magnet picks up little more.

Avoid stirring a magnet directly through wet concentrates. Magnetite clumps around the magnet and wraps up fine gold with it.

Step 3: Gravity Separation Methods

With magnetics reduced and material sized, gravity methods finish the job. Choose based on how much material you have and how fine your gold is.

Hand panning in a finishing pan

A smaller pan, often 10 inches or less, with fine riffles is ideal. Use a tub of clean water and very gentle motions. Add a drop of surfactant (a wetting agent or a little dish detergent) to break surface tension. Without it, flour gold can float on the water surface and wash out. This method is cheap and effective, but slow if you have buckets of concentrates.

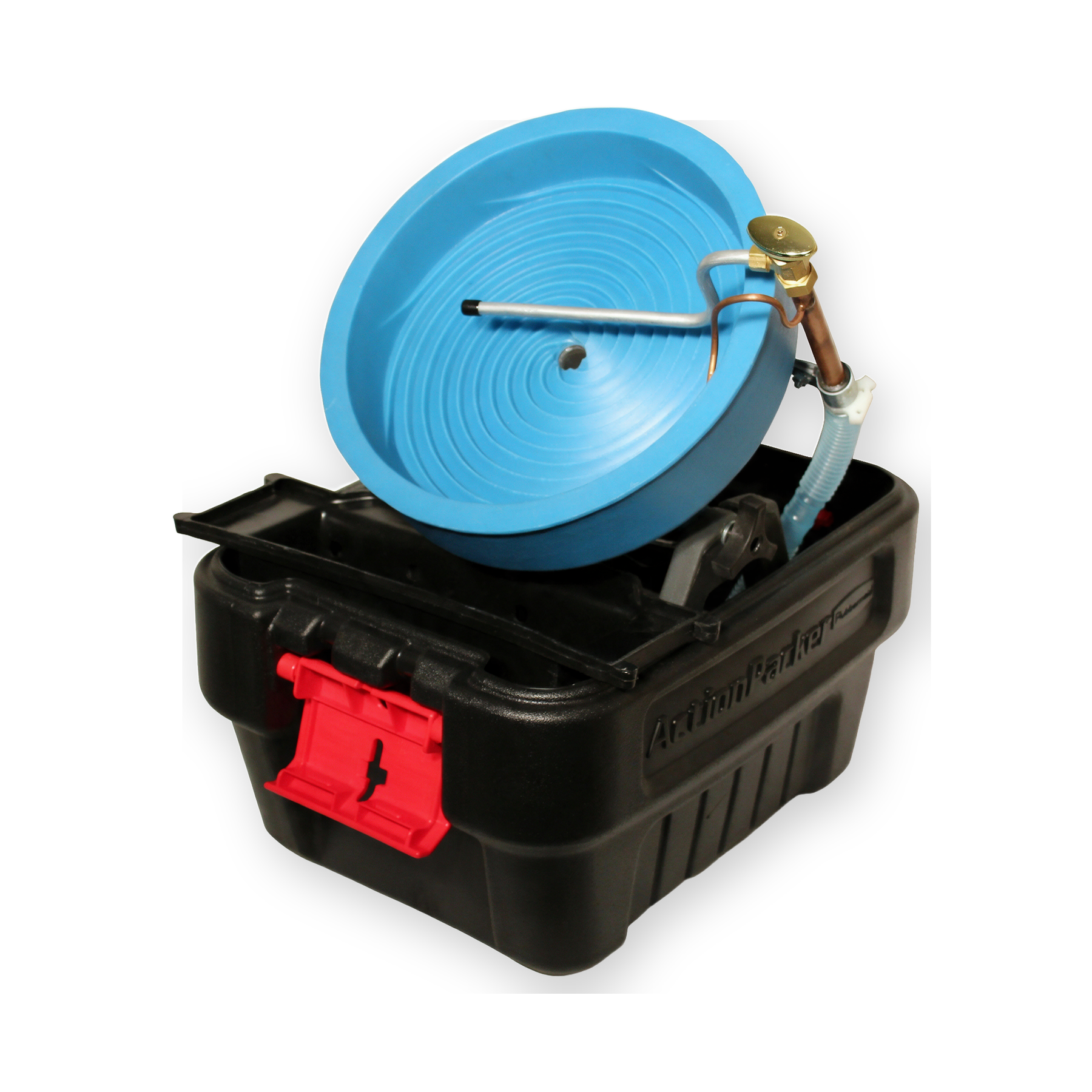

Automatic spiral wheel

A spiral wheel is essentially a mechanized gold pan. The tilted wheel rotates while water sprays across it; spiral riffles carry heavy particles toward a center hole where gold drops into a cup, while lighter sands wash off the bottom edge. Wheels are popular because they process concentrates continuously and do not tire. The Camel Mining Desert Fox Variable Speed is a compact 12V spiral wheel designed for classified concentrates; variable speed helps when your black sand content changes from batch to batch. See how to set up a spiral gold wheel for tuning tips.

Concentrator bowls and finishing tables

Vortex-style concentrator bowls use a swirl of water to hold gold in the center while lighter material spills over the rim. Finishing tables use a shallow ramp with gentle water flow so gold forms a visible line. Both handle very fine gold well, but they require patient tuning of water flow and feed rate.

Snuffer bottle

Once gold is visible, a snuffer bottle draws it out of the pan with a little water. Squeeze, place the tip next to the gold, and release slowly.

Comparing Ways to Separate Gold From Black Sand

What Not to Do

• Do not use mercury. Amalgamation was historically common, but the U.S. Environmental Protection Agency warns that heating mercury-gold amalgam is very dangerous and can lead to significant mercury exposure. EPA also notes that gold can be recovered safely and economically without mercury using gravity concentration.
• Do not blow dry concentrates. Blowing across dried black sand removes light particles, but flour gold is light enough to go with them.
• Do not discard tailings until you test them. Pan a sample of your waste from every stage. If you see gold, slow down.
• Do not mix chemicals at home without understanding the hazards. Acids and cyanide-based processes are industrial methods with serious safety and disposal requirements.

A Simple Home Workflow

1. Save all concentrates from the field in sealed buckets.
2. Screen into three or four size fractions.
3. Inspect the coarse fraction by eye and pick out visible gold.
4. Remove magnetics from each fraction with a bagged magnet.
5. Run medium and fine fractions on a spiral wheel or in a finishing pan with surfactant.
6. Collect gold with a snuffer bottle; dry it gently.
7. Pan-test tailings before discarding them.

For the full process from bucket to vial, including drying and weighing, see gold cleanup: from concentrates to clean gold. If you are still learning the basics, start with how to pan for gold.

Frequently Asked Questions

Is there gold in black sand?

Often, but not always. Black sand travels with gold because both are heavy, so it is a useful sign. Some black sand contains no gold at all, which is why you should test each batch rather than assume.

Can a magnet pick up gold?

No. Gold is not magnetic. But a magnet can drag gold that is physically trapped inside clumps of magnetite, so always pan what the magnet removes before discarding it.

Why does gold float in my pan?

Very fine gold can be held on the water surface by surface tension, especially if it has an oily film. A drop of wetting agent or dish detergent in your water usually solves it.

What is the fastest way to separate gold from black sand?

For larger volumes, classifying and then running concentrates through a spiral wheel is generally faster than hand panning. For a cup or two of material, a careful finishing pan is often just as quick.

Is black sand worth anything on its own?

Generally not to a hobbyist. Some black sands contain other valuable minerals, but recovering them is an industrial process. Most prospectors keep it only until the gold is out.
