3D Ground Scanner vs Ground Penetrating Radar (GPR): Key Differences

The short answer to the 3D ground scanner vs GPR question: ground penetrating radar (GPR) sends radio pulses into the ground and times their echoes to build depth cross-sections, while most handheld "3D ground scanners" sold for prospecting record sensor readings across a grid and display them as a colored 3D plot of signal strength. GPR is the established tool for engineering and archaeology surveys in suitable soils. Handheld ground scanners are portable, simpler to operate and aimed at finding metallic and cavity anomalies, but their depth information is calculated and should be treated as an estimate.

Both technologies have real strengths and real limits. This guide explains how each works, what affects performance, and how to decide which fits your project.

How ground penetrating radar works

GPR transmits short pulses of high-frequency electromagnetic energy into the ground through an antenna. When the pulse reaches a boundary between materials with different electrical properties (soil to rock, dry to wet soil, soil to a pipe or an air-filled void), part of the energy reflects back to a receiver. The system records the strength of each reflection and how long it took to return. With an estimate of how fast the signal travels in that soil, the two-way travel time is converted to an approximate depth.

Pulling the antenna along a line produces a radargram: a vertical cross-section of the ground. Small, compact objects typically appear as hyperbola-shaped arcs. Collecting many parallel lines over a grid lets software build depth slices and true 3D volumes.

Antenna frequency controls depth and detail

GPR antennas are chosen for the job. Lower frequencies penetrate deeper but only resolve larger features; higher frequencies resolve fine detail but reach shallower depths. Industry guidance commonly describes very high-frequency antennas (in the gigahertz range) for inspecting concrete within roughly a foot or two of the surface, mid-range antennas around 400 MHz for utilities and larger targets a few feet down, and low-frequency antennas around 100 MHz for large features such as sinkholes, caves and soil layers that can be 20 feet or more deep in favorable conditions.

Soil is the limiting factor

The USDA Natural Resources Conservation Service notes that high electrical conductivity rapidly weakens the radar signal, and that conductivity increases with water, clay and soluble salt content. Well-drained sandy soils suit deep profiling; poorly drained clay soils are much less suitable. A state transportation geology reference on void detection gives a practical sense of the range: GPR depth of investigation can reach tens of feet in sandy soil but may be limited to around two feet in clay or where groundwater is saline. In other words, the same GPR unit can perform very differently from one site to the next.

How handheld 3D ground scanners work

The handheld 3D ground scanners sold to prospectors and treasure hunters are a different category. Manufacturers describe a range of sensing principles, including magnetic and electromagnetic sensors, transceiver probes and proprietary signal processing. The common workflow is similar across brands:

1. Define a rectangular area and walk parallel lines across it.
2. The sensor takes readings at regular intervals (automatic or manual "impulses").
3. Software arranges the readings into a grid and draws a colored surface or 3D plot.
4. The operator looks for anomalies: positive peaks often associated by the manufacturer with metal, negative dips often associated with cavities.

On many of these systems the vertical axis of the 3D graphic shows signal strength rather than measured depth, and any depth figure comes from the manufacturer's algorithm. That does not make the scan useless; it means the image tells you where something different is, more reliably than it tells you exactly what or how deep. Our guide to reading 3D ground scanner images explains how to interpret these plots.

3D ground scanner vs GPR: side-by-side comparison

A note on GPR regulation in the US

Ground penetrating radar emits ultra-wideband radio energy, so in the United States it falls under FCC rules. The FCC's Part 15 rules for ground penetrating radar and wall imaging systems limit operation to purposes associated with law enforcement, firefighting, emergency rescue, scientific research, commercial mining and construction, and require coordination. If you are considering buying or operating GPR equipment as an individual, confirm eligibility with the equipment vendor and check the current FCC rules, as these can change. Hiring a qualified survey contractor is often the simplest route for one-off projects.

When GPR is the better choice

• You need reliable depth cross-sections, for example to locate utilities, tanks or foundations before construction.
• You are mapping soil layers, burials or archaeological features where non-metallic structure matters.
• The site has dry, sandy or well-drained soils where radar penetrates well.
• You need a defensible report, which usually means a professional survey with documented methods.

When a handheld ground scanner may make sense

• You are a prospector or treasure hunter scanning many small areas in the field and want a portable, battery-powered tool.
• You are looking for metallic anomalies or possible cavities and plan to confirm with other tools before digging.
• You want a visual record of an area to compare over multiple visits.
• You accept that depth and target-type outputs are manufacturer estimates and that field results depend on soil, target size and operator technique.

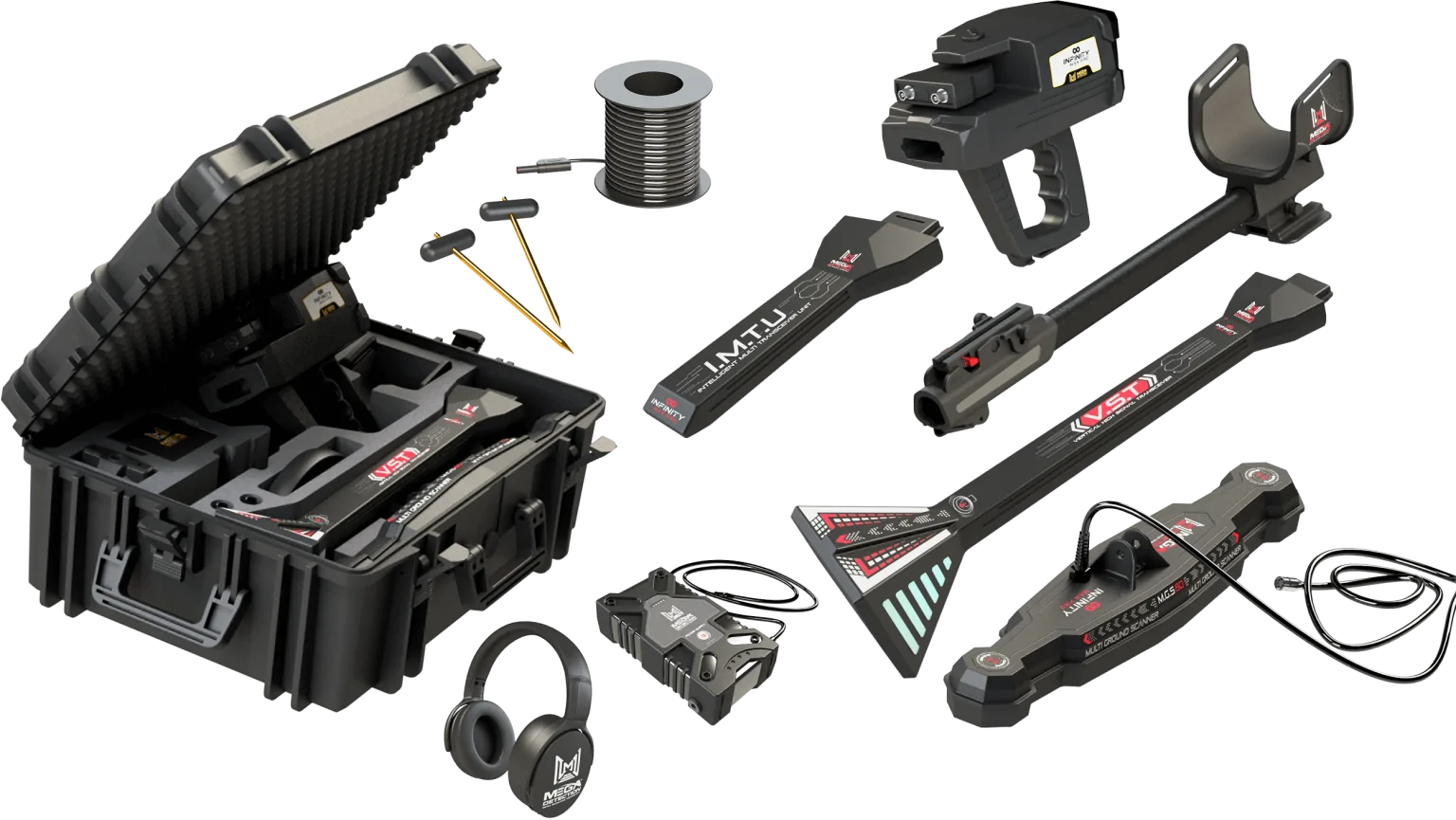

Several multi-system units combine a ground-scanning probe with conventional search coils so you can scan an area and then confirm with induction. The Mega Detection Infinity Max Pro, for example, is described by the manufacturer as pairing a multi-sensor ground scanner probe with pulse induction coils and an Android analysis app. You can compare the full range in our 3D ground scanners collection.

Questions to ask before you buy either

1. What exactly does the instrument measure, and how is depth determined?
2. How does performance change in clay, wet or salty ground?
3. Can the data be saved and exported for later review?
4. What training, manuals or video guides are provided?
5. What warranty and support apply, and who handles repairs?
6. Can you get a realistic demonstration on ground similar to yours?

For background on how scanners fit alongside conventional detectors, see 3D ground scanners vs traditional metal detectors.

Frequently asked questions

Is a 3D ground scanner the same as GPR?

Usually not. GPR measures reflected radio pulses and their travel time. Most handheld 3D ground scanners sold for prospecting plot sensor readings over a grid. Some brands use radar-related language in marketing, so check the technical documentation for the actual sensing method.

Which goes deeper, GPR or a ground scanner?

It depends on soil and target. GPR depth is strongly limited by clay, moisture and salts, and can range from a couple of feet to tens of feet. Handheld scanner depth figures are manufacturer estimates under ideal conditions. Neither should be bought on a headline depth number alone.

Can GPR find gold?

GPR does not identify metal type. It can show a strong reflector, which could be metal, rock or a void boundary. It is not designed for small nuggets.

Can a ground scanner find tunnels and voids?

Many manufacturers state that their scanners detect cavities. Larger, shallower voids in uniform ground are easier to find. Confirmation with a second method is strongly recommended.

Can I rent GPR instead of buying?

Survey companies and some equipment rental firms offer GPR services or rentals. For one-time projects, hiring a qualified operator is often more practical than learning the data processing yourself.

Sources

• >USDA NRCS: Ground Penetrating Radar
• >eCFR: 47 CFR 15.509, Technical requirements for ground penetrating radars and wall imaging systems
• >NCDOT Geotechnical: Mine Void Detection (PDF)
