How to Read a 3D Ground Scanner Image: Targets, Cavities and False Readings
If you want to know how to read 3D ground scanner images, start with one idea: the picture is a map of signal changes, not a photograph of what is buried. Strong positive peaks (usually shown in red or yellow) indicate an area where the sensor read higher than the surrounding ground, which manufacturers typically associate with metal. Negative dips (usually blue) indicate lower readings, which many systems associate with voids, cavities or non-conductive material. A real target repeats in the same place on multiple scans taken from different directions; a false reading usually does not.
This guide explains what you are looking at on the screen or tablet, how to separate metal from cavity signatures, and the most common causes of misleading images. Every scanner brand uses its own color scale and software, so treat this as a general framework and always check your unit's manual for its specific conventions.
What a 3D ground scanner image actually shows

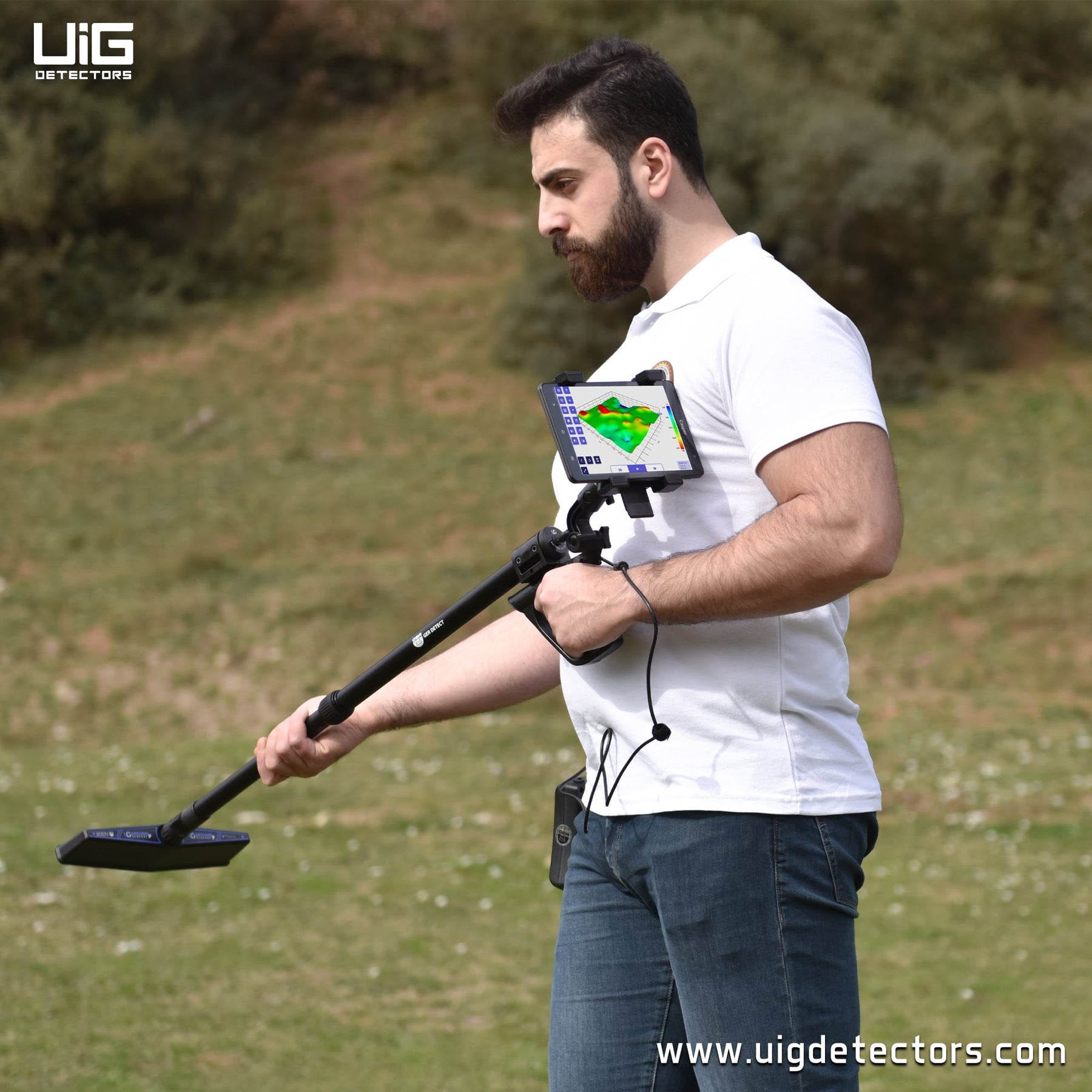

Most handheld 3D ground scanners sold to prospectors and treasure hunters work by taking sensor readings at regular intervals as you walk a series of parallel lines over a rectangular area. The software then arranges those readings into a grid and interpolates between them to produce a colored surface or a three-dimensional-looking plot.
That has an important consequence. In many systems, the two horizontal axes of the image are your scan area (length and width), while the "height" of the 3D graphic and its color represent signal strength. In other words, the third dimension is often amplitude, not depth. A tall red peak means "a strong positive reading here," not necessarily "an object standing upright in the soil." Some systems add a calculated depth estimate, but that number comes from the manufacturer's algorithm and depends on assumptions about target size and soil. It should be treated as an estimate.
True ground penetrating radar (GPR) works differently and produces cross-sections (radargrams) with time-to-depth information. If you are unsure which kind of data your instrument produces, read our comparison of 3D ground scanners vs GPR before you interpret any depth figures.
How to read 3D ground scanner colors and shapes
Color scales vary, but the most common convention on consumer and prospecting scanners looks like this. Always confirm against your own unit's documentation.
| What you see | Common manufacturer interpretation | Other possible causes |
|---|---|---|
| Red or yellow peak, sharp edges | Metallic (conductive or magnetic) anomaly | Iron trash, hot rocks, buried fencing, rebar, a phone or keys on the operator |
| Broad red or orange area | Large metal mass or mineralized zone | Natural iron-rich soil, slag, ash deposits, a change in soil type |
| Blue or dark blue dip | Void, cavity, tunnel or non-conductive material | Dry loose soil, a gravel lens, a filled trench, uneven walking height |
| Green or neutral field | Undisturbed background ground | The baseline the software has chosen; it can shift if calibration was poor |
| Stripes running along scan lines | Not a target | Inconsistent speed, height or direction between lines |
Metal signatures
A compact metallic object typically shows as a well-defined positive peak that rises out of a calm background. Many scanners also show a smaller negative "shadow" next to a ferrous target, because iron distorts the local magnetic field in both directions. That paired positive-negative pattern is common with iron and steel. Non-ferrous metals such as gold, silver or copper usually produce a single positive response on instruments that sense conductivity, but small non-ferrous items at depth may produce little or no visible response at all.
Cavity and void signatures
A void is the absence of material, so it often appears as a negative area with clear edges and a shape that makes geometric sense: a rectangle for a chamber, a long band for a tunnel or pipe trench, a rounded shape for a natural pocket. Cavities are easier to see when they are large relative to their depth and when the surrounding ground is uniform. Our guide to cavity and void detection covers the geophysics in more detail.
Mineralization and background noise
Mineralized soil tends to produce irregular, patchy color across the whole image instead of one clean anomaly. If half your scan is red and half is blue with no clear shape, you are probably looking at soil changes rather than a buried object. Iron-rich stones produce small, sharp peaks that can look convincing; our article on hot rocks and mineralized ground explains how to rule them out.
A step-by-step routine for reading a scan
- Check the scan quality first. Before looking for targets, look for stripes, sudden jumps between lines or a tilted background. These point to walking or calibration problems, and the scan should be repeated.
- Identify the background. Decide what "normal" looks like in this scan. A target is only meaningful relative to the ground around it.
- Locate anomalies, then note their position. Mark where each anomaly sits in the grid (for example, line 6, impulse 12) so you can relocate it on the ground.
- Describe the shape. Is it a point, a line, a rectangle or a diffuse patch? Natural features are often irregular; man-made features are often geometric.
- Look for the ferrous pattern. A positive peak with an adjacent negative lobe often indicates iron.
- Rescan at 90 degrees. Walk the same area with lines running crosswise. A real target appears in the same place in both scans. Line-direction artifacts do not.
- Rescan with a smaller grid. Tighten the area around the anomaly to sharpen its outline.
- Confirm with a second method. Use a pinpointer, a conventional metal detector or a probe where appropriate before any significant excavation.
The most common causes of false readings
Most misleading images come from the operator, the site or the settings rather than from the instrument itself. Work through this checklist before you trust any anomaly:
- Inconsistent sensor height or tilt. Raising, lowering or tilting the probe as you walk changes the reading and can create false peaks and dips.
- Inconsistent walking speed. In automatic-impulse modes, a change in pace stretches or compresses the data and distorts shapes.
- Metal on the operator. Belt buckles, steel-toe boots, phones, keys and watches can show up in every line.
- Nearby infrastructure. Fences, vehicles, buried utilities, power lines and reinforced concrete produce strong signals that can bleed into a scan.
- Slopes and uneven ground. Walking up or down a slope changes the sensor-to-ground geometry.
- Soil changes. Wet patches, compacted paths, old fill, ash pits and clay lenses can all look like targets.
- Starting position errors. If you do not start each line at the same baseline, objects appear to shift between lines.
- Electromagnetic interference. Radio transmitters and power lines can introduce noise. See our guide to EMI and detector chatter.
Depth estimates: how much to trust them
Depth readouts on handheld scanners are calculated, not measured. The software typically compares the strength and width of an anomaly against assumptions about target size and soil. A small object close to the surface and a large object deeper down can produce similar signals, which is why depth figures should be treated as rough guides. Field results depend on soil type, moisture, target size and shape, orientation, and operator technique. Manufacturer depth figures describe ideal conditions and should never be read as a promise of what you will see on your site.
A sensible approach is to use the scan to decide where to investigate and roughly how large an anomaly is, then confirm depth with conventional tools, probing or careful excavation.
Recording your scans so you can compare them
Interpretation gets much easier when you can compare scans side by side. Save each scan with a consistent naming scheme, note the site, date, grid size, line direction, mode and soil condition, and take a phone photo of the scan area with a reference marker. Our guide to ground scanner software and data covers exporting and organizing scans. If you are choosing equipment, the 3D ground scanners collection lists which units come with tablet-based analysis software.
Frequently asked questions
What does red mean on a 3D ground scanner?
On most systems, red or yellow represents a positive anomaly, meaning the sensor read higher than the surrounding ground. Manufacturers commonly link this to metal, but iron-rich stones, mineralized soil and nearby infrastructure can produce the same color.
What does blue mean on a ground scanner image?
Blue usually represents a negative anomaly. Many manufacturers associate this with cavities, voids or non-metallic material. Dry loose soil, gravel pockets and inconsistent sensor height can also create blue areas.
Can a 3D ground scanner tell gold from other metals?
Some manufacturers state that their software can classify metal types. In practice, discrimination at depth is difficult for any instrument, and readings are affected by target size, shape and soil. Treat metal-type indications as a guide, and confirm before digging.
Why does my scan look different every time?
Differences in walking speed, sensor height, line spacing, starting point and calibration all change the image. A real target should appear in the same place across repeat scans and crosswise scans, even if its exact shape changes.
Is the 3D image a picture of the buried object?
No. It is a graphic built from sensor readings. On many handheld systems the vertical axis shows signal strength rather than depth, so shapes should be interpreted cautiously.
How many scans should I take before digging?
At minimum, two scans in perpendicular directions plus a tighter follow-up scan over the anomaly. Confirming with a conventional detector or pinpointer before major excavation is good practice.
